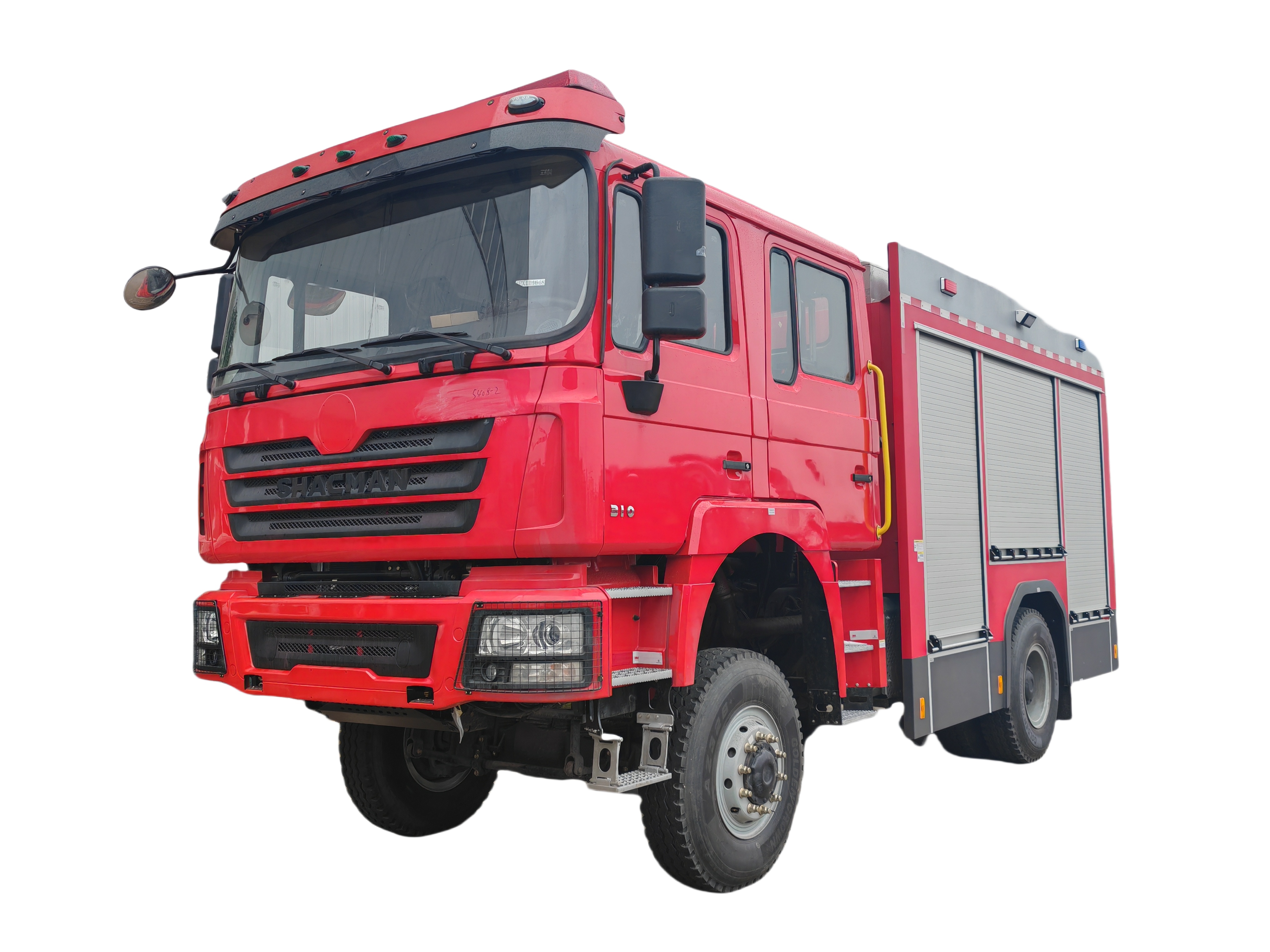

シャックマン4x4山火事消防車

陝西汽車F3000 4x4山林火災用消防車（シャクマン4x4消防車、シャクマンレスキュー消防車とも呼ばれる）最近、POWERSTAR TRUCKSが開発したSHACMAN 4x4駆動ダブルキャブ4立方メートル水槽オフロード消防車がアフリカに正式輸出され、中国の高性能消防設備の国際市場における重要な一歩となりました。この消防車は、優れたオフロード性能、強力な設計能力、そして正確な顧客ニーズへの対応から、アフリカの顧客から高い評価を得ており、国際舞台で「中国製」に輝きを加えています。

陝西汽車4x4全輪駆動シャーシ：オフロード性能の頂点

この消防車の心臓部である陝西汽車4x4全輪駆動シャーシは、オフロード分野でその優れた性能を発揮します。アフリカの地形は複雑で、広大な砂漠、険しい山々、泥沼のジャングルなどがあり、消防車の走破性と安定性には非常に高い要求が課せられます。強力なパワートレインと高度なサスペンション技術により、陝西汽車4x4全輪駆動シャーシは、さまざまな複雑な道路状況に容易に対処できます。

まず第一に、陝西汽車4x4全輪駆動シャーシは、高トルクエンジンとインテリジェントなギアボックスを搭載した効率的なパワートレインを備えており、低速での登坂や高速走行時でも強力なパワー出力を維持できます。第二に、シャーシはフルタイム四輪駆動システムを採用しており、路面状況に応じてトルクを自動的に配分し、滑りやすい、泥濘地、または軟弱な路面でも優れたグリップを維持します。さらに、シャーシは高い地上高と強化されたサスペンションシステムも備えており、車両の走破性と耐衝撃性を効果的に向上させ、アフリカの複雑な地形を容易に走破できます。

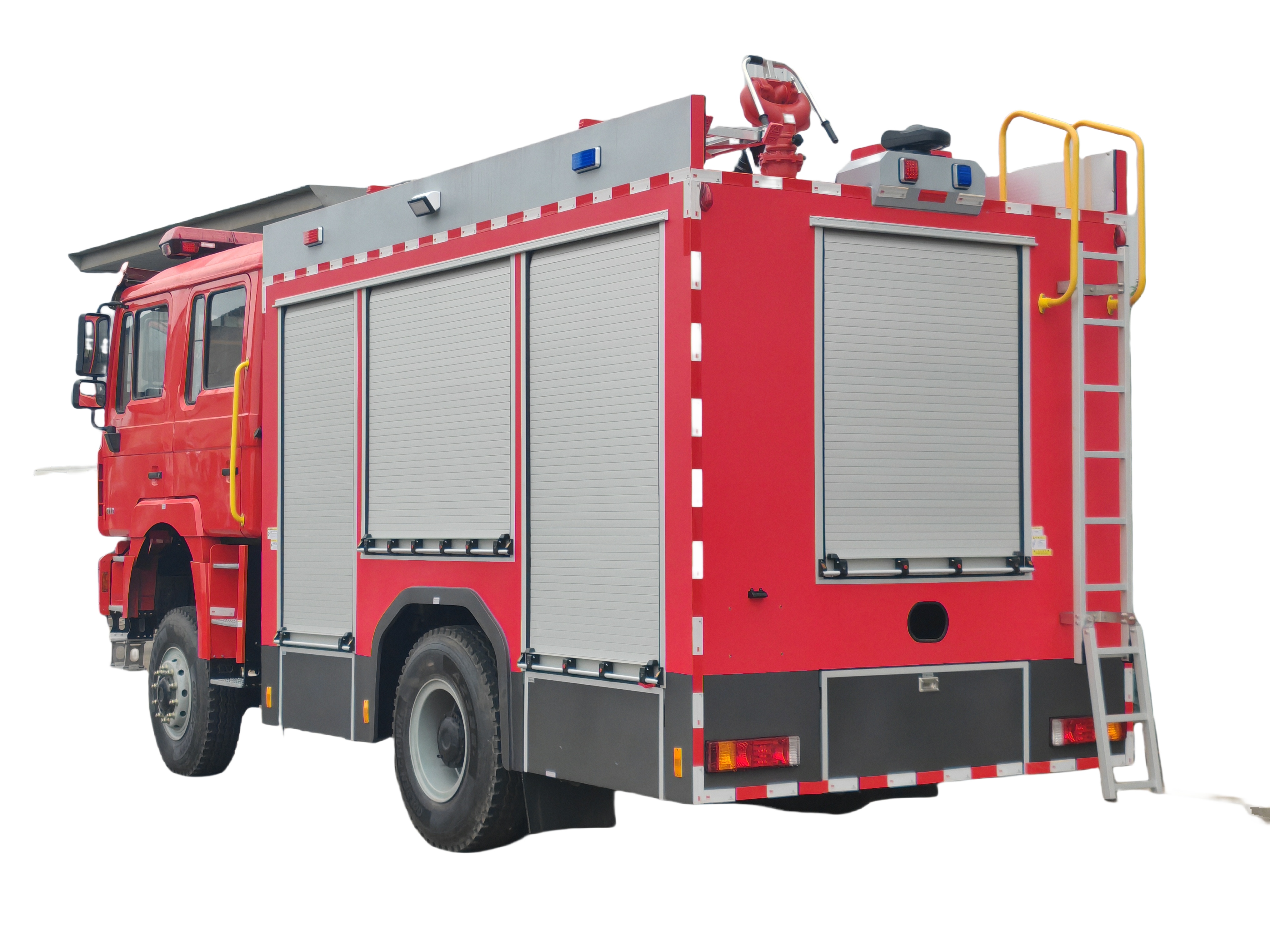

耐久性のある後部ラダー

4x4オフロードドライブシステム

CADによる完全な消防救助設計

シャクマン4x4山林火災用消防車仕様

:

シャーシ仕様

地上高は非常に高く、3段ペダルの最も低いペダルでも地面からタイヤの高さの半分以上あります。オフロードRVに適しています。

改造と適合性：

バンパーは高い位置に配置され、アプローチアングルが増加しています。左右中央の3段構造は分解と修理が容易です。内部トレーラーフックは一体型で、ウインチの取り付け位置は確保されています。

シャーシの前部、両側、後部サスペンションには、ローラーブラシ、雪かき、除雪機などの特殊装置の取り付けインターフェースが用意されており、優れた改造適合性を備えています。

Shacman F3000 4X4 off-road chassis is a chassis designed for off-road and special operations, with powerful power and excellent passability. Here are some key information:

Power system:

Equipped with Weichai WP13 engine, the maximum horsepower can reach 550, the displacement is 12.54L, and the peak torque is 2550N·m.

Equipped with imported Allison 4500 6AT gearbox with torque converter, transfer case is ZQC2000, which can reasonably distribute engine power according to working conditions.

Drive and suspension:

Adopt 4X4 full-time four-wheel drive mode, equipped with three differential locks (axle and wheel) to ensure the passability in various complex terrains.

The front and rear axles are Hande 9.5-ton front axle and 13.5-ton double-stage reduction axle, and the rear axle speed ratio is 4.262.

Tire and ground clearance:

Equipped with 14.00R20 off-road tires, the rolling radius is 590mm, which significantly improves the chassis's passability.

The ground clearance is extremely high, and the lowest pedal of the three-stage pedal is still half the height of the tire from the ground, which is suitable for off-road RVs.

Modification and adaptability:

The bumper is arranged at a high position to increase the approach angle. The left, middle and right three-stage design is easy to disassemble and repair. The internal trailer hook is integrated and the winch installation position is reserved.

The front, both sides and rear suspension of the chassis have reserved installation interfaces for special devices such as roller brushes, snow shovels, and snow blowers, which have good modification adaptability.

Driving and safety:

Support C1 driving license driving, equipped with a variety of safety systems, the chassis weight of the whole vehicle is 7.6 tons, and the fuel tank capacity is 400L.

Shaanxi Automobile F3000 4X4 off-road chassis has become the first choice for off-road RVs and special operation vehicles with its powerful power, excellent passability and wide modification adaptability.

The strong design capabilities of fire truck manufacturers: accurately meet customer needs

The successful export of this fire truck is inseparable from the strong design capabilities of fire truck manufacturers. During the research and development process, the manufacturer fully considered the actual needs of the African region, from functional design to detail optimization, and strived to provide customers with the most perfect solution.

First of all, the fire truck adopts a double-row cab design, which can accommodate 6 firefighters, greatly improving the efficiency of teamwork. The interior of the cab is spacious, equipped with comfortable seats and a humanized control system, ensuring that firefighters can still maintain an efficient working state during long-term operations. Secondly, the fire truck is equipped with 4 cubic water tanks, which can store a large amount of water to meet the needs of firefighting operations in Africa. The water tank is made of high-strength materials and has excellent corrosion resistance and impact resistance, ensuring stable operation in harsh environments.

In addition, the fire truck is also equipped with advanced firefighting equipment, including high-pressure water pumps, foam injection systems and multi-functional water cannons, which can quickly respond to various fire scenes. The manufacturer also added explosion-proof devices and thermal insulation layers to the vehicle according to customer needs, further improving the safety and reliability of the vehicle.

Perfectly meet customer needs: the international competitiveness of Made in China

The successful export of this fire truck not only demonstrates the technical strength of Shaanxi Automobile Group and fire truck manufacturers, but also highlights the competitiveness of Made in China in the international market. African customers highly praised the performance and design of the vehicle during the acceptance process, believing that this fire truck perfectly meets their needs and can effectively improve local fire emergency capabilities.

This cooperation has also laid a solid foundation for in-depth cooperation between Chinese companies and the African market. In the future, Shaanxi Automobile Group will continue to uphold the concept of "innovation-driven, quality first", launch more high-performance and high-reliability products, and help Chinese manufacturing go global.
