How much water can a fire truck carry? This is one of the first questions our customers face when selecting a fire truck. There is no single fixed number — it depends on vehicle type, chassis capacity, design purpose, and regional regulations, ranging from 2,000 liters light-duty units to 25,000 liters industrial fire trucks. But a larger tank does not always mean better performance; fire fighting vehicle water tank capacity must be properly matched with pump flow rate, monitor discharge rate, and chassis capacity to deliver effective firefighting results.

Fire Truck Water Tank Capacity How Much Water Do Fire Trucks Hold

This article starts with the fundamentals of fire truck water tank capacity, analyzes typical storage ranges for different vehicle types, examines the key factors that influence tank design, and provides practical purchasing guidance.

Key Takeaways:

Fire truck water tank capacity typically ranges from 2,000 to 25,000 liters
Different fire truck types have different tank capacities
A larger tank does not mean better firefighting capability
Tank capacity must be matched with pump flow, monitor flow, and chassis capacity
Industrial firefighting typically requires large tanks, while municipal firefighting prioritizes maneuverability

» I. Three Basic Fire Truck Water Tank Types

Pumper Trucks: These are the most common municipal fire trucks. They rely primarily on fire hydrants for water supply and carry approximately 1,900–3,800 liters of onboard water for initial attack. The core of these vehicles is the pump, not the tank — they are designed to deliver pressurized water once connected to a hydrant.

Tanker Trucks (Water Tenders): These vehicles are dedicated to transporting large volumes of water, with tank capacities typically exceeding 11,400 liters. They play a critical role in rural and remote areas where fire hydrants are not available, shuttling water from water sources to the fire scene for pumpers to use.

Pumper-Tankers: These vehicles combine pumping and water transport functions in one unit. They can both discharge water for firefighting and supply other vehicles. Tank capacities typically range from 5,700 to 11,400 liters, making them a versatile solution for fire departments.

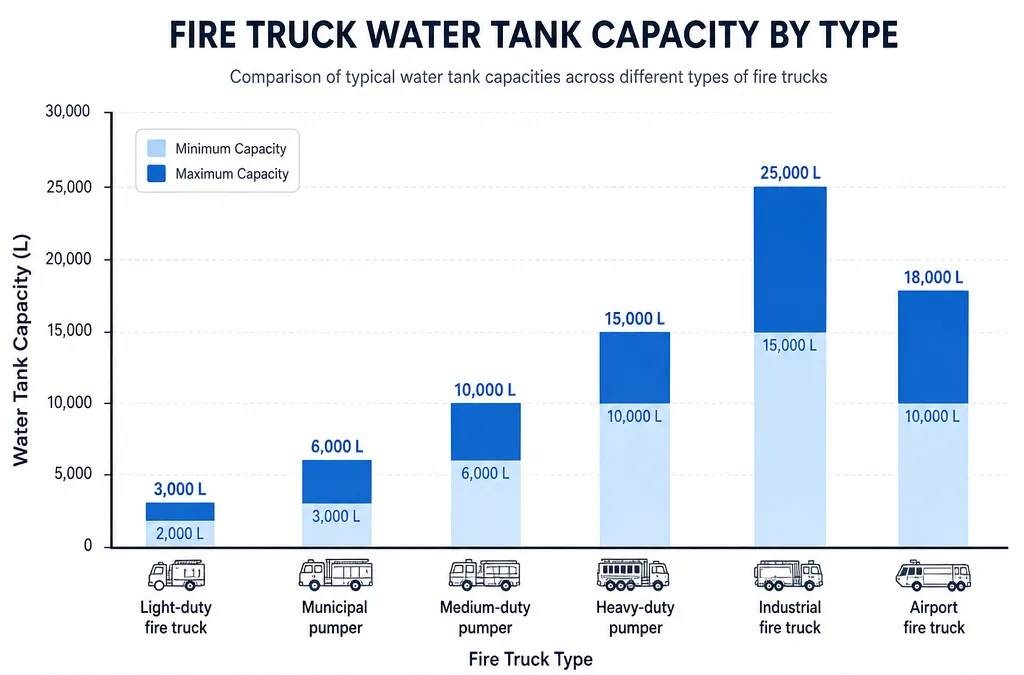

» II. How Much Water Can Different Types of Fire Trucks Carry?

Fire Truck Type	Typical Tank Capacity	Primary Application
Light-duty fire truck	2,000–3,000 L	Urban quick response, initial attack
Municipal pumper	3,000–6,000 L	Municipal firefighting, structural fires
Medium-duty pumper	6,000–10,000 L	Combined urban and industrial tasks
Heavy-duty pumper	10,000–15,000 L	Extended operations, long-distance response
Industrial fire truck	15,000–25,000 L	Oil, chemical, mining firefighting

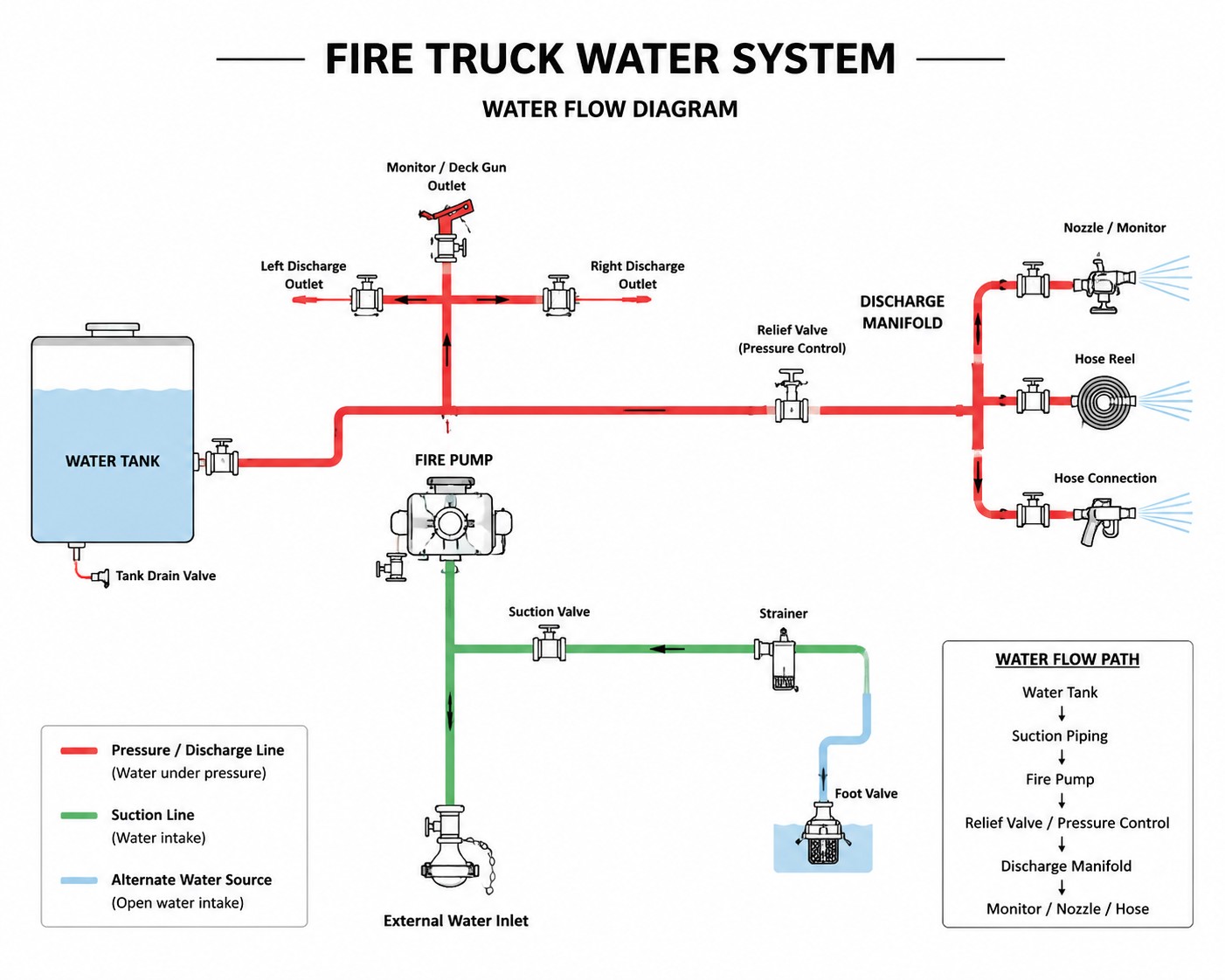

» III. How Does a Fire Truck Water System Work?

A fire truck is not just a mobile water tank — it is a complete water delivery system. Water stored in the tank must pass through several key components before it can reach the fire. The complete flow path is:

Water Tank → Intake Piping → Fire Pump → Pressure Control System → Discharge Manifold → Fire Monitor/Nozzle/Hose

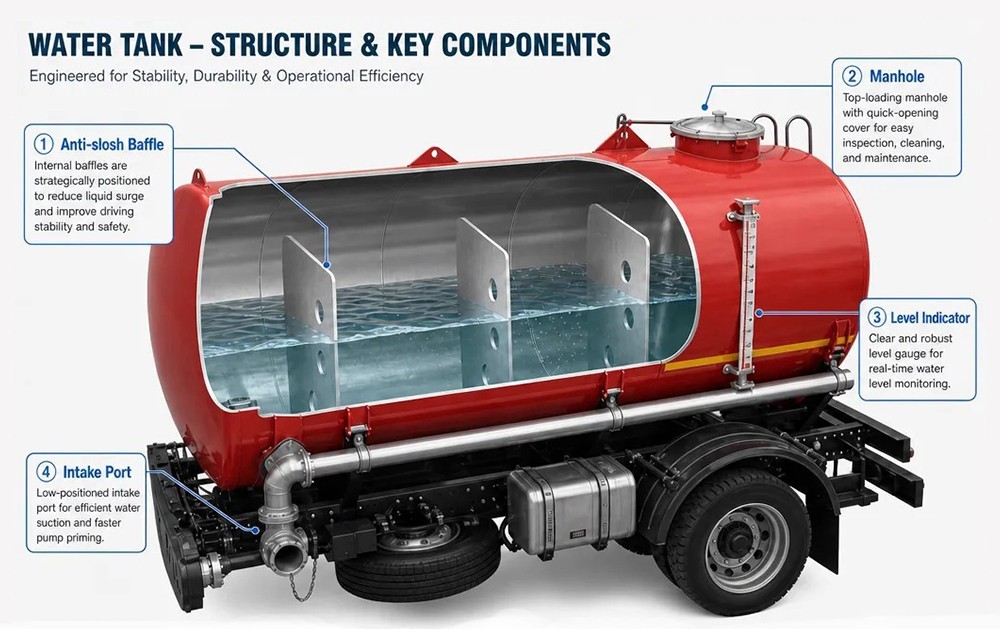

Water Tank

The water tank is the core storage container. Its design directly affects usable water volume and service life.

Anti-slosh baffles: Internal partitions that prevent water surge during driving and sharp turns, maintaining vehicle stability.
Corrosion-resistant materials: Tanks are typically made of 304 stainless steel or coated carbon steel to resist long-term water corrosion.
Manhole: An access point on top of the tank for internal inspection, cleaning, and maintenance.
Level indicator: Displays remaining water in real time, helping operators plan firefighting strategies.

Intake Piping

The intake piping delivers water from the tank to the fire pump. It is typically large-diameter to reduce flow resistance, equipped with a check valve to prevent backflow, and fitted with a strainer to prevent debris from entering the pump.

Fire Truck Water Tank Structure Diagram

Fire Pump

The fire pump is the power core of the water system. It is responsible for:

Building water pressure to overcome pipe resistance and vertical lift
Increasing flow to meet firefighting demand
Providing continuous water supply for extended operations

Discharge System

Pressurized water is delivered through the discharge manifold to various delivery devices, including fire monitors (high-volume remote firefighting), hand-held nozzles (precision firefighting), high-pressure hose reels (for localized fires or quick response), and multiple discharge outlets (simultaneous hose connections).

» IV. Why Can’t a Fire Truck Discharge 100% of Its Tank Capacity?

Many assume that a 10,000-liter tank can discharge 10,000 liters of water. In reality, the usable water volume is typically lower than the nominal tank capacity. The main reasons are:

1. Suction inlet height restriction

The fire pump's suction inlet is typically positioned at a certain height above the bottom of the water tank, rather than being flush with the tank floor. This is designed to prevent drawing in sediment and impurities that have settled at the bottom. However, it also means that approximately 5%–10% of the water at the very bottom cannot be drawn in and utilized by the pump.

2. Preventing air from entering the fire pump

The suction inlet must remain fully submerged at all times to prevent air from being drawn into the pump body. Once air is sucked in, it can cause the pump to run dry, lead to cavitation (where the impeller rotates in a mixture of air bubbles and water, and the collapsing bubbles generate shock waves that damage the impeller), and result in a sudden drop in pressure. In severe cases, this can damage or even destroy the fire pump.

3. Effect of baffles inside the tank

Baffles divide the tank into multiple compartments. While they effectively suppress water surge during vehicle movement, the flow holes at the bottom of these compartments are relatively small. At low water levels, the flow rate of water is restricted, preventing some of the water from reaching the suction pipe area in a timely manner.

Nominal Capacity	Usable Capacity	Loss Ratio
5,000 L	Approximately 4,500–4,700 L	6%–10%
10,000 L	Approximately 9,000–9,400 L	6%–10%
15,000 L	Approximately 13,500–14,100 L	6%–10%

» V. Matching Tank Capacity with Fire Pump Flow

Matching principle: If the pump flow rate is too high, the tank will be depleted within minutes. If the flow rate is too low, the large tank capacity cannot be fully utilized. A general recommendation is that the continuous discharge time at rated flow should be no less than 5–10 minutes.

Tank Capacity	Recommended Pump Flow	Recommended Application
2,000 L	30 L/s	Small fire trucks, community firefighting
3,000–5,000 L	40 L/s	Municipal firefighting, initial attack
6,000–8,000 L	60 L/s	Municipal firefighting, structural fires
10,000–15,000 L	80 L/s	Industrial firefighting, extended operations
15,000 L and above	100 L/s and above	Petrochemical, airport firefighting

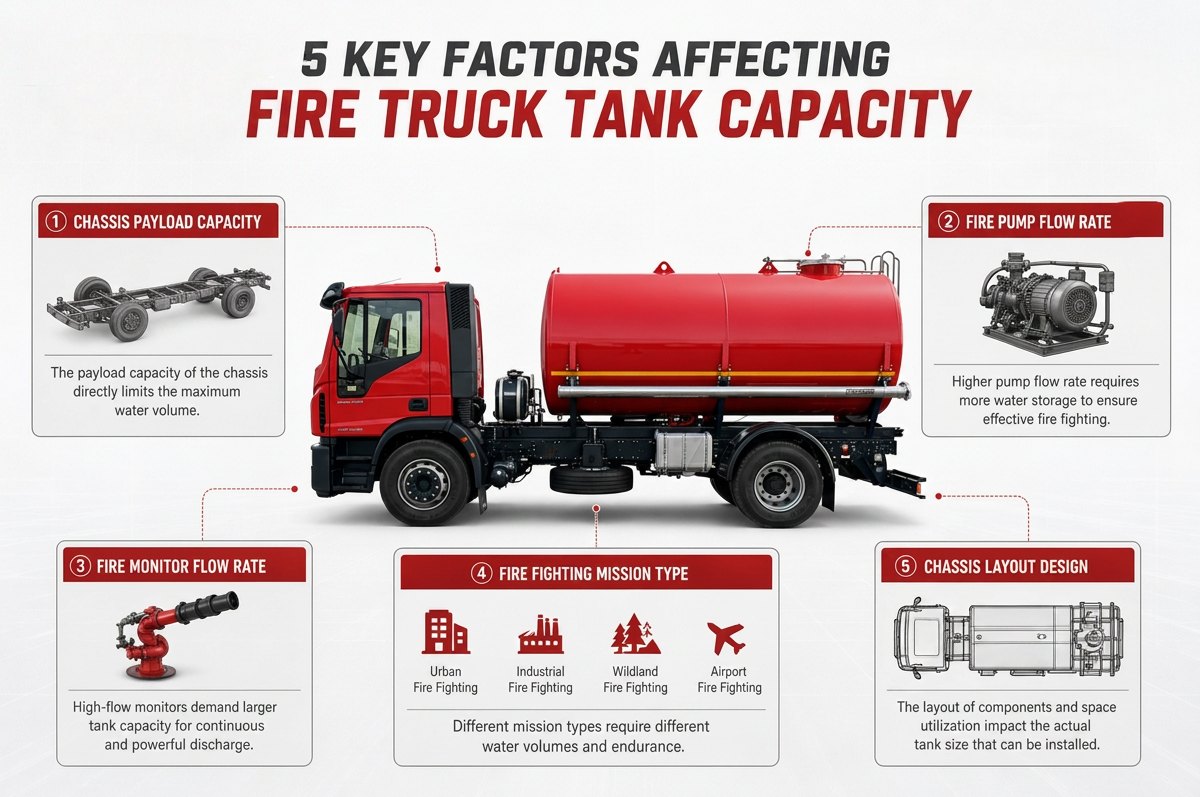

» VI. Five Key Factors Affecting Tank Capacity

1. Chassis load capacity

The water tank capacity is primarily limited by the vehicle's gross vehicle weight (GVW). Common fire truck chassis include 4×2, 6×4, and 8×4 drive configurations. The longer the wheelbase and the greater the number of axles, the higher the total load capacity. For example, a 6×4 chassis can typically accommodate a larger water tank than a 4×2 chassis. Additionally, the installation position of the water tank must take into account the front and rear axle load distribution to ensure the vehicle maintains stability and maneuverability under both full-load and no-load conditions.

2. Fire pump flow rate

A reasonable match between the fire pump flow rate and the water tank capacity is essential. For a pump with a flow rate of 30 L/s, a 10,000-liter tank can be emptied in approximately 5.5 minutes; while a 60 L/s pump would drain it in less than 3 minutes. The higher the pump flow rate, the faster the water tank is depleted. Therefore, when selecting specifications, a high-flow pump should be paired with a larger tank to ensure sufficient continuous operation time. Conversely, pairing a low-flow pump with an oversized tank results in wasted vehicle payload and cost.

3. Fire monitor flow rate

Fire monitors are major water consumers. Large monitors can have flow rates of 48–100 L/s or more. A high-flow monitor can deplete an entire water tank within minutes. Therefore, fire trucks equipped with high-flow monitors must either be fitted with correspondingly large-capacity tanks or be able to quickly connect to an external water source.

4. Type of firefighting mission

Different types of fires impose varying requirements on water tank capacity. For urban structural fires, firefighters can typically connect to hydrants within 3–5 minutes, so the on-board tank is mainly used for initial suppression, and the capacity requirement is relatively moderate. For industrial fires, the fire scene is often far from hydrants and firefighting operations last longer, necessitating large-capacity tanks of over 10,000 liters. For wildfires, fire trucks need to travel long distances and sustain continuous water discharge, making both capacity and endurance critical.

5. Chassis Layout

The arrangement of the water tank, foam tank, and equipment compartments on the chassis directly affects the maximum installable tank capacity. The engine location determines the available space; the inclusion of foam tanks occupies some volume; and the number and size of equipment compartments also directly impact the final tank capacity.

» VII. Does a Larger Tank Mean Better Performance?

Many believe that a larger tank automatically means longer firefighting time. In reality, sustained discharge time is influenced by multiple factors.

Using a 10,000-liter tank as an example, with a pump flow of 100 L/s, the theoretical duration is 10,000 ÷ 100 = 100 seconds (about 1.7 minutes), but actual discharge time is only about 80–90 seconds. The difference between theoretical and actual values arises because approximately 6%–10% of the water at the bottom cannot be fully utilized, and baffle design restricts water flow at low levels.

Actual firefighting time also depends on:

Fire Monitor Flow

Fire monitors consume large volumes of water. A PL48 monitor delivers 48 L/s, while a PL60 delivers 60 L/s. A high-flow monitor can empty a 10,000-liter tank in just 2 minutes.

Number of Active Discharge Outlets

Single handline (20 L/s): approximately 8.3 minutes
Two handlines (40 L/s): approximately 4.2 minutes
Two handlines plus one monitor (100 L/s): approximately 1.7 minutes

Discharge Pressure and Foam Systems

High-rise firefighting requires higher discharge pressure, which means faster tank depletion. When using foam systems (typically at 3%–6% ratios), some of the tank capacity is used for foam concentrate mixing, reducing the available water volume accordingly.

Conclusion: Tank capacity is an important factor, but actual duration depends on pump flow, monitor configuration, the number of active outlets, and foam system usage. Large tanks should be paired with a sound water management strategy, and external water sources should be connected as soon as possible when available.

» VIII. Tank Capacity Comparison: Water Tender vs. Foam Fire Truck

Foam fire trucks must reserve space for a foam tank in addition to the water tank. Therefore, under the same chassis conditions, the water tank capacity is typically reduced.

Item	Water Tender	Foam Fire Truck
Water tank capacity	Larger	Smaller
Foam tank	None	Yes (200–2,000 L)
Applicable fires	Class A (ordinary combustibles)	Class A and Class B (including flammable liquids)
Primary targets	Buildings, forests, ordinary fires	Oil, chemical, fuel fires
Purchase cost	Lower	Higher (includes proportioning system)

» IX. Frequently Asked Questions (FAQ)

1. How much water can a fire truck typically carry?

Most municipal fire trucks carry 3,000–10,000 liters. Large industrial fire trucks can reach 15,000–25,000 liters, while mini fire trucks typically carry 500–1,500 liters, depending on the vehicle type and purpose.

2. Which type of fire truck has the largest tank capacity?

Large industrial fire trucks and airport fire trucks typically have the largest tanks, with some models exceeding 20,000 liters.

3. Is a larger tank always better?

Not necessarily. Tank capacity must be matched with chassis capacity, pump performance, and actual application requirements. Pursuing a larger tank alone can lead to reduced maneuverability and higher costs.

4. How much does a fully loaded fire truck weigh?

It depends on the vehicle type and tank capacity. 10,000 liters of water weighs approximately 10 tons. When combined with the vehicle's curb weight (typically 10–15 tons), the fully loaded weight can reach 20–25 tons, requiring an appropriately rated chassis.

5. Can a fire truck refill while fighting a fire?

Yes. Fire trucks can continuously refill from fire hydrants, natural water sources, or water tenders, enabling sustained firefighting operations.

6. Does a foam fire truck have a smaller water tank than a water tender?

Typically, yes. Foam fire trucks must reserve space for a foam tank in addition to the water tank, so the water tank capacity is usually reduced under the same chassis conditions.

7. How do I determine the right tank capacity for my project?

Consider fire type, water supply conditions, pump flow rate, chassis capacity, and project requirements. Choose the capacity that best matches your needs rather than simply pursuing the largest tank available.

» X. Conclusion

Fire truck water tank capacity typically ranges from 2,000 to 25,000 liters, with different capacities suited to different operating scenarios. Municipal firefighting prioritizes maneuverability — 3,000–6,000 liters is sufficient for initial attack, relying on hydrants for sustained supply. Industrial and airport firefighting requires 15,000 liters or more for long-distance and extended operations. Wildland firefighting requires a balance between capacity and off-road capability, with 6,000–10,000 liters being a common configuration.

When selecting a fire truck, tank capacity is just one factor. It must be properly matched with pump flow, monitor configuration, chassis capacity, and operational requirements to deliver effective firefighting performance.
